AEOLUS™ Compact CO2 Incubator Shaker IS-ACMA / IS-AMA


  • 7″ High-Res Color Touch Screen with intuitive graphic interface
  • Innovative chamber design features smooth rounded internal corners for easy cleaning
  • Infra-Red(IR) CO2 sensor for precise and reliable CO2 detection
  • Optional WiFi and RS485 control
  • 2 Sets of UV lights for easy sterilization
  • Audible and visual alarms
  • Mirror finish, pharmaceutical-grade stainless steel chamber
  • Stackable design up to 3 units

The CO2 Incubator Shaker features Temperature, Shaking, CO2 Concentration, and Humidity controls. Its’ stackable design helps maximize floor space, with the capability to stack up to three units high.


Product Name AEOLUS™ Compact Magnetic Drive CO2 Incubator Incubator Shaker AEOLUS™ Compact Magnetic Drive Incubator Shaker
Platform Dimensions WxD 550 x 470 mm (21.65 x 18.50 in)
Max Capacity Clamp capacity: 50mlx72 / 100mlx30 / 150mlx30 / 200mlx30 / 250mlx30 / 500mlx16 / 1000mlx12 / 2000mlx8 / 5000ml(Thomson)x4Sticky Mat: 50mlx72 / 100mlx53 / 150mlx41 / 200mlx32 / 250mlx30 / 500mlx20 / 1000mlx12 / 2000mlx8 / 5000ml(Thomson)x4
Capacity 190 L
Max Load 10 kg (22.05 lb)
Temp. Range Room Temp. Minus 18°C~60°C (Lowest Temp is 4°C)
Temp. Accuracy ±0.1 °C
Temp. Uniformity ±0.3°C (@37°C)
Temp. Recover Time After Door is Opened for 30s ≤6 min (@37°C)
Speed 0(stop), 30~ 300 RPM
Speed Accuracy ±1 RPM
Speed Driver Motor Beltless DC Brushless Motor
Orbit Diameter ∅26mm (∅1.02in)
CO2 Sensor Infrared N/A
CO2 Control Range 0~20% N/A
CO2 Control Accuracy ±0.1% N/A
CO2 Recover Time after door open 30s ≤6min (@5%) N/A
Relative Humidity Type Active Active
Max Humidity 95% 95%
Programmable Segments 12 Segments
Timer 0~999h59min
Illumination LED Lamps on Left and Right Walls
Disinfection UV Lamps on Left and RightWalls
Door Opening Direction Leftward
Internal Dimensions WxDxH 654 x 605 x 303 mm (25.75 x 23.82 x 11.93 in)
Outside Dimensions WxDxH 970 x 780 x 530(+80 with feet) mm (38.19 x 30.71 x 20.87(+3.15 with feet) in)
Net Weight 170 kg (375 lb)
Display 7″ Color Capacitive TouchScreen
Parameter Protection Password Protected
Data Stored Time, Temperature, Speed, CO2 Concentration, Humidity, Instrument Status Time, Temperature, Speed, CO2 Concentration, Humidity, Instrument Status
Data Storage Interval 1 Minute
Screen Data Display Displays Most Recent 7 Days of Data
USB Data Export Most Recent 912 Days of Data
Automatic Defrost Yes
Noise Level ≤55dB (When Compressor is Running)
Auto-Recovery after Power Interruption Yes
Power when Heating ≤600 W
Power when Cooling 70~180W
Power supply AC 110V±11V, 60Hz
Power ≤780W ≤730
Mobile Monitoring and Control by WiFi Optional through IS-A64 Accessory and App
Warranty 2 Years Parts and Services

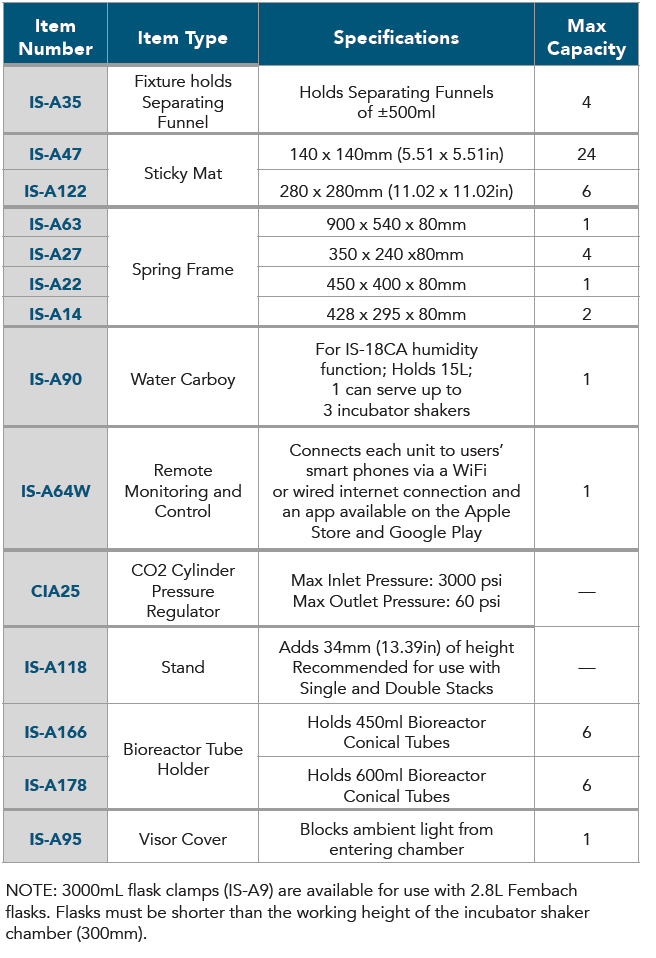

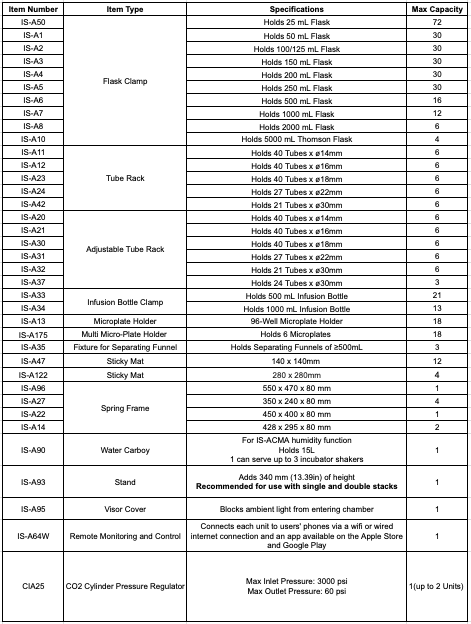

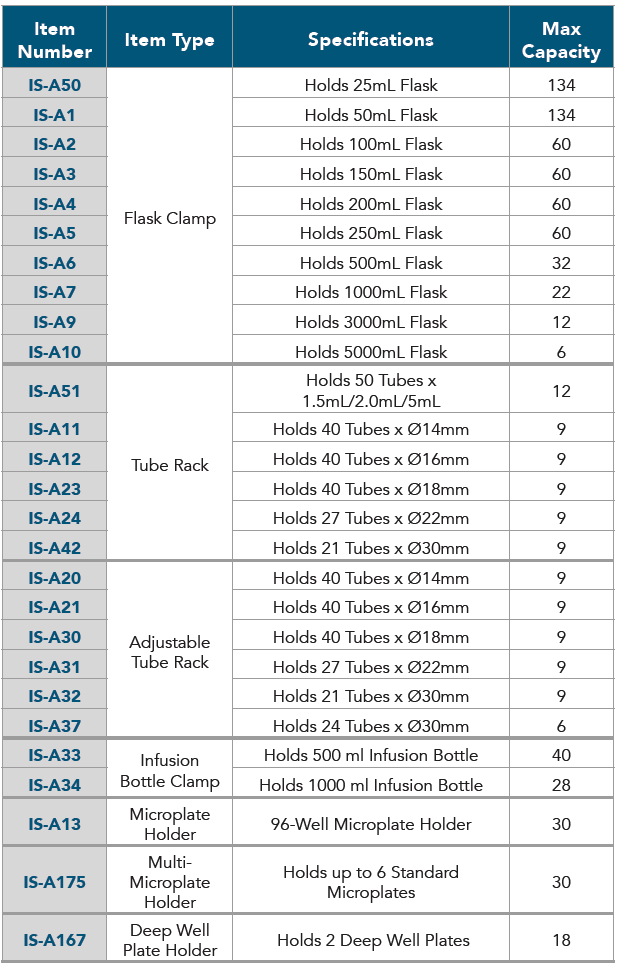

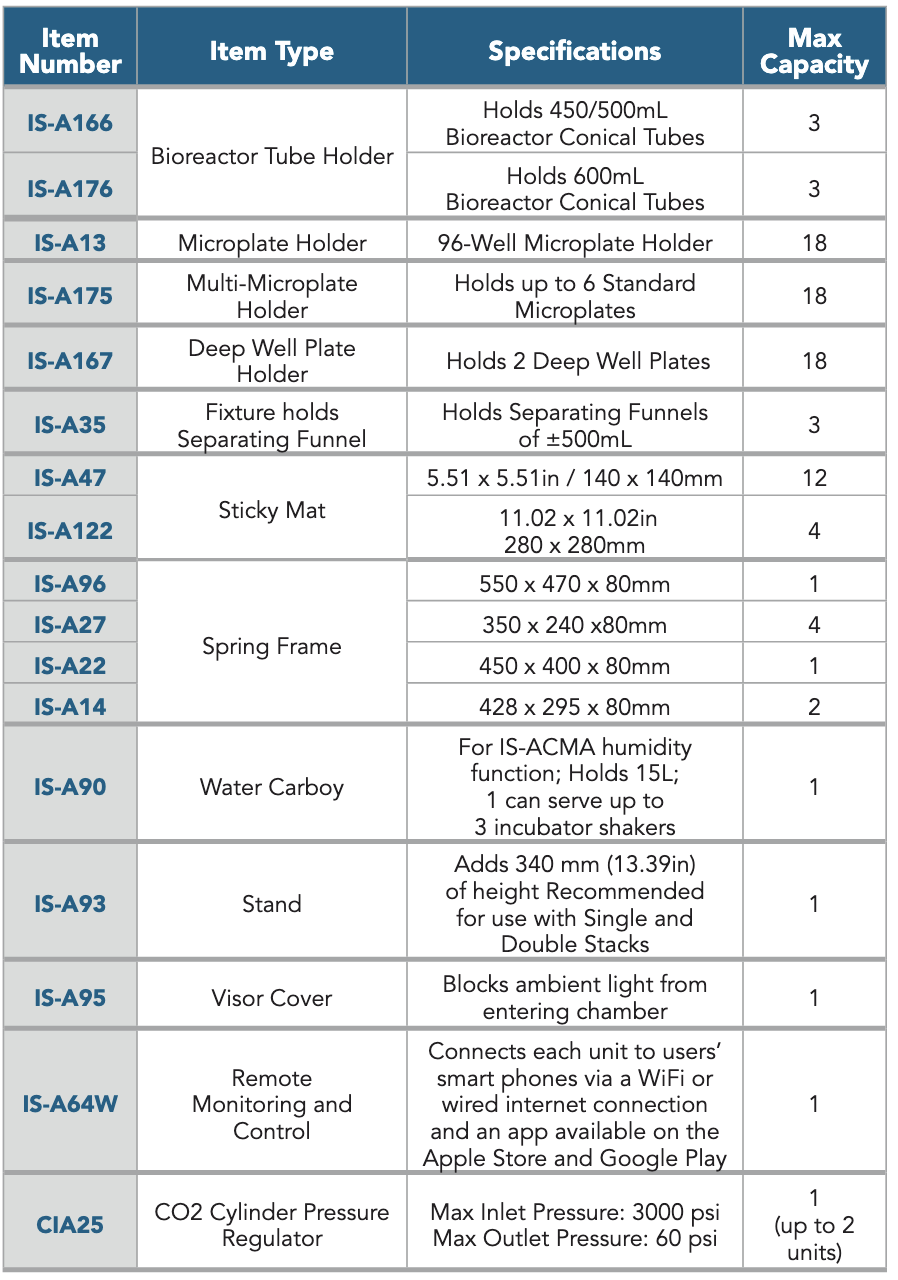

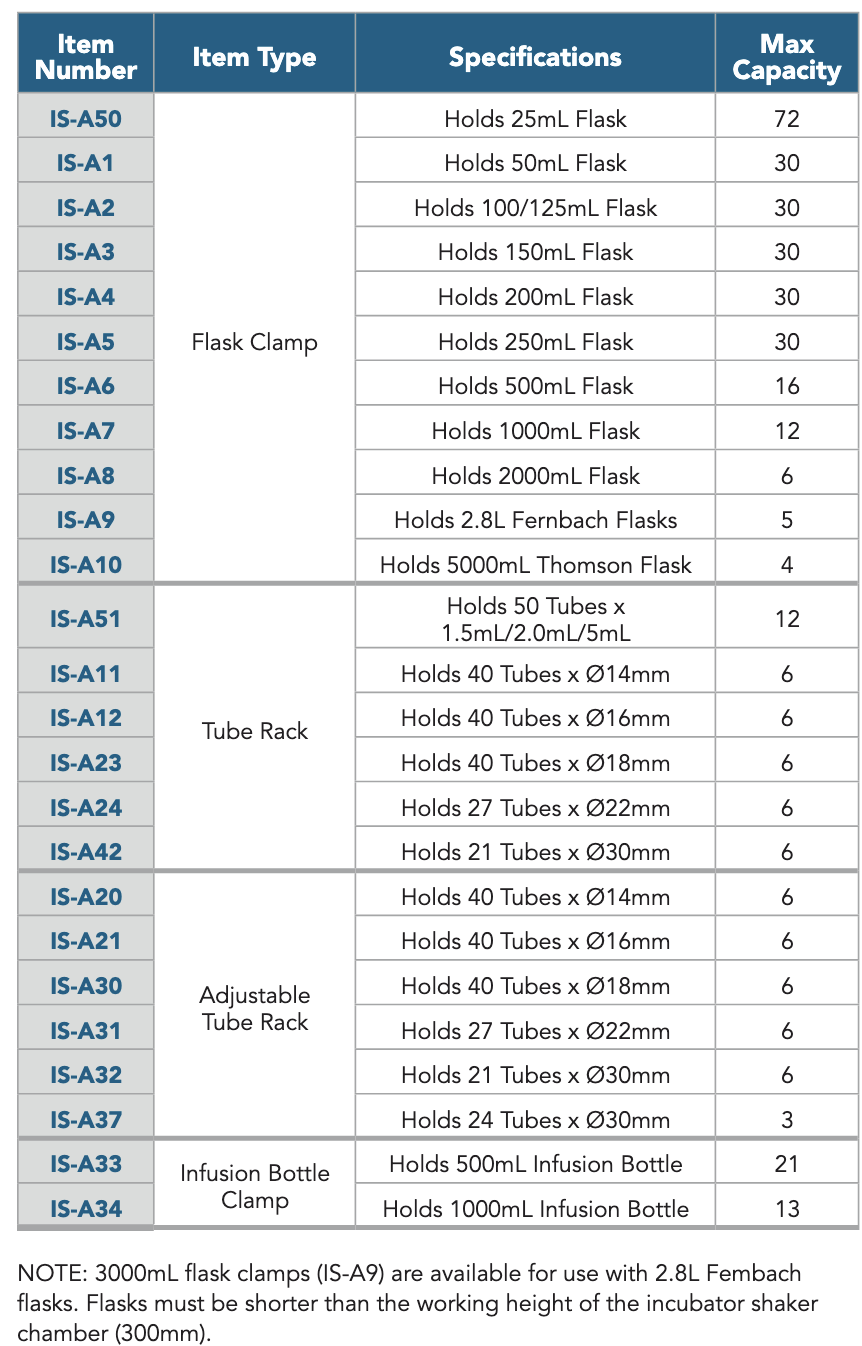

Accessories Specifications

Download our Product Datasheet (PDF):


Request Quote from Distributor or more
