AEOLUS™ IS-18CA/IS-18A Stackable CO2 Incubator Shaker

Features

  • 7″ High-Res Color Touch Screen with intuitive graphic interface
  • Chamber design features smooth rounded internal corners for easy cleaning
  • Capacity is 6 x 5L Erlenmeyer shaker flasks
  • Infra-Red(IR) CO2 sensor for precise and reliable CO2 detection
  • Optional WiFi and RS485 monitoring and control
  • 2 Sets of UV lights for easy sterilization
  • Audible and visual alarms
  • Mirror finish, pharmaceutical-grade stainless steel chamber
  • Stackable design up to 3 units.

The CO2 Incubator Shaker features controlled Temperature, Shaking, CO2 Concentration and Humidity. It can be stacked 3 units high while only requiring the area of a single unit.

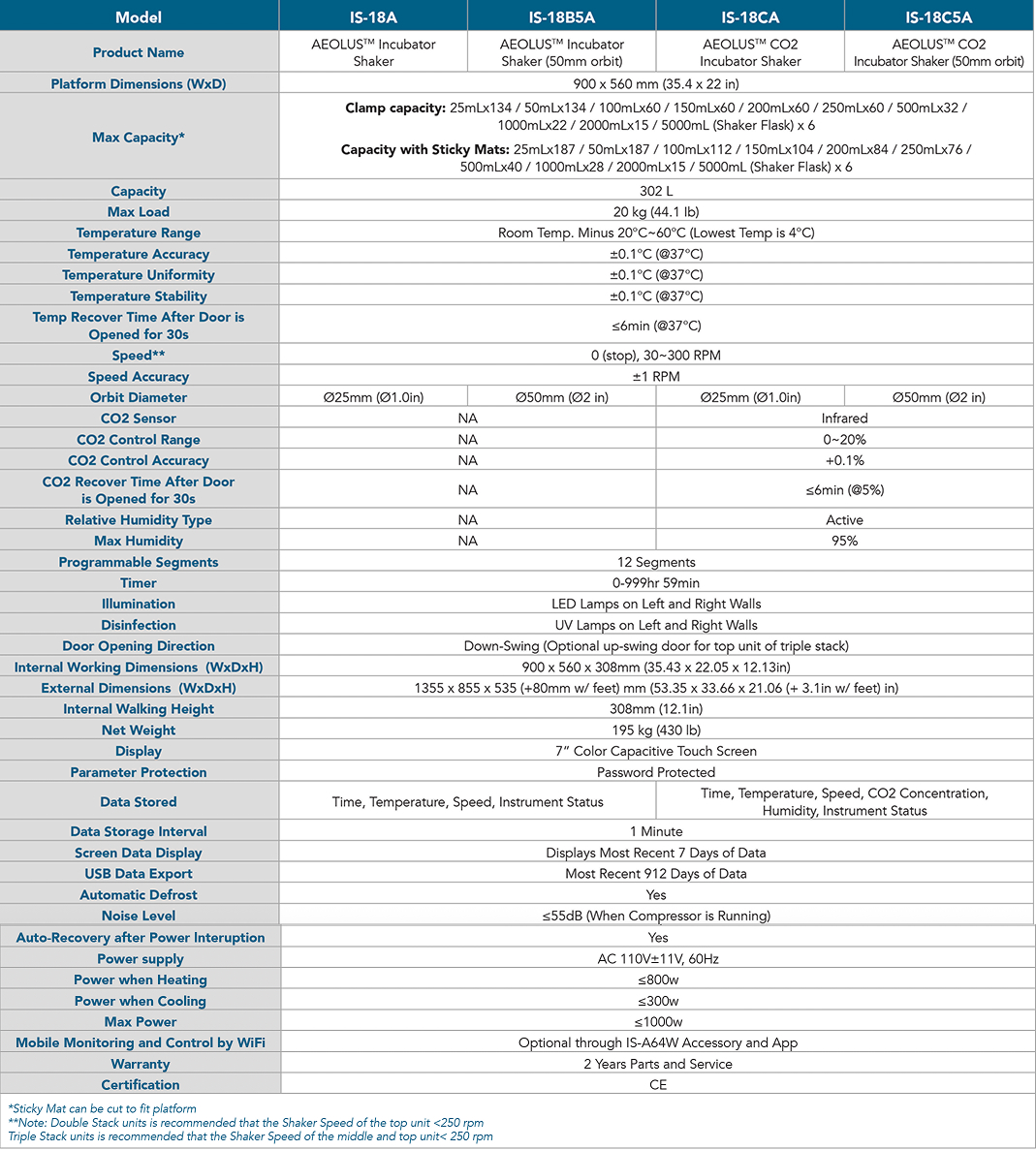

Specifications:

Model IS-18CA IS-18A
Product Name AEOLUS™ CO2 Incubator Shaker AEOLUS™ Incubator Shaker
Platform Dimensions WxD 900 x 550 mm (35.4 x 21.6 in)
Max Capacity Clamp capacity: 25mLx134 / 50mLx134 / 100mLx60 / 150mLx60 / 200mLx60 / 250mLx60 / 500mLx32 / 1000mLx22 / 2000mLx15 / 3000mLx12 / 5000mL(Shaker Flask)x6

Sticky Mat: 25mLx187 / 50mLx187 / 100mLx112 / 150mLx104 / 200mLx84 / 250mLx76 / 500mLx40 / 1000mLx28 / 2000mLx15 / 3000mLx12 / 5000mL(Shaker Flask)x6

Max Load 20 kg (44.1 lb)
Temperature Range Room Temp. Minus 20°C~60°C (Lowest Temp is 4°C)
Temperature Accuracy ±0.1°C (@37°C)
Temperature Uniformity ± 0.2°C (@37°C)
Temperature Stability ± 0.2°C (@37°C)
Temp Recover Time After Door is Opened for 30s ≤6min (@37°C)
Speed 0(stop), 30~300 RPM
Speed Accuracy ±1 RPM
Orbit Diameter ∅26mm (∅1.02in)
CO2 Sensor Infrared N/A
CO2 Control Range 0~20% N/A
CO2 Control Accuracy ±0.1% N/A
CO2 Recover Time After Door is Opened for 30s ≤6min (@5%) N/A
Relative Humidity Type Active N/A
Max Humidity 95% N/A
Programmable Segments 12 Segments
Timer 0~999hr 59min
Illumination LED Lamps on Left and Right Walls
Disinfection UV Lamps on Left and Right Walls
Door Opening Direction Down-Swing
Internal Dimensions WxDxH 985 x 775 x 444mm (38.78 x 30.51 x 17.4in)
Outside Dimensions WxDxH 1380 x 875 x 530(+80 with feet) mm (54.33 x 34.45 x 20.87(+3.15 with feet) in)
Internal Working Height 307.5mm (12.1in)
Net Weight 195 kg (430 lb)
Display 7″ Color Capacitive Touch Screen
Parameter Protection Password Protected
Data Stored Time, Temperature, Speed, Instrument Status Time, Temperature, Speed, CO2 Concentration, Humidity, Instrument Status
Data Storage Interval 1 Minute
Screen Data Display Displays Most Recent 7 Days of Data
USB Data Export Most Recent 912 Days of Data
Automatic Defrost Yes
Noise Level ≤55dB (When Compressor is Running)
Auto-Recovery after Power Interruption Yes
Power supply AC 110V±11V, 60Hz
Power when Heating ≤800W
Power when Cooling ≤300W
Max Power ≤1000W
Mobile Monitoring and Control by WiFi Optional through A64 Accessory and App
Warranty 2 Years Parts and Service

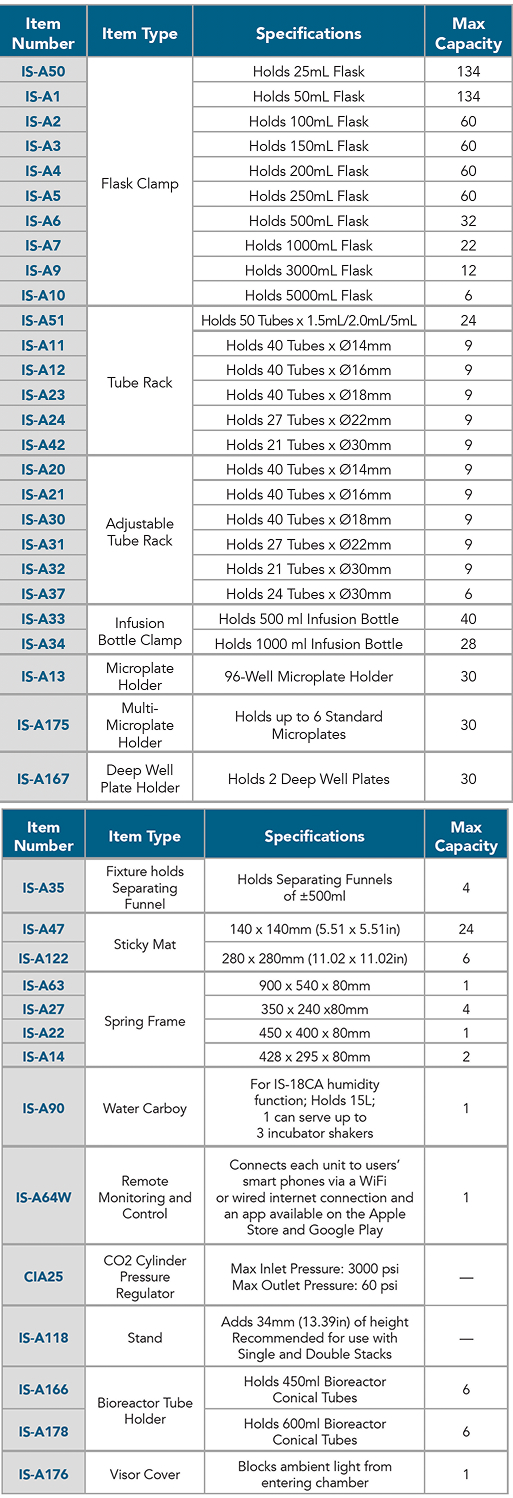

Accessory Specifications

Download our Product Datasheet (PDF):

AELOUS  IS-18CA/IS-18A Stackable CO2  INCUBATOR SHAKER _Datasheet
