Orbital Shaker / Designed for CO2 Incubators

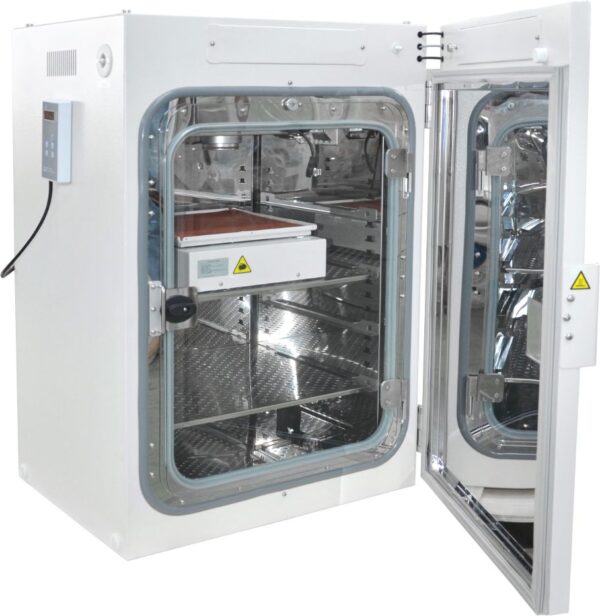

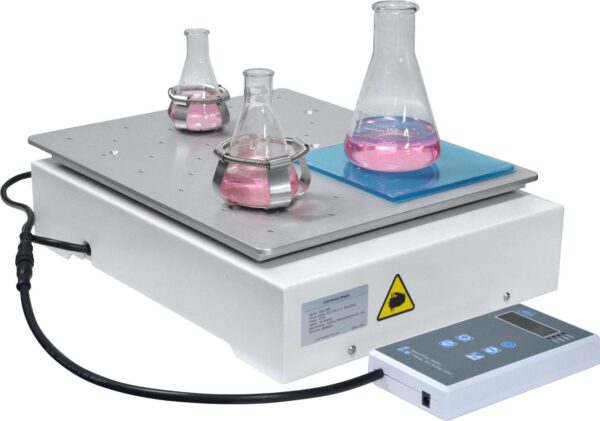

  • Remote Control attaches externally to CO2 Incubator
  • LED display shows both set and actual parameters without opening the door
  • Simple and intuitive design provides easy operation
  • Alarm function alerts the user when the timer reaches zero
  • Shaker is easy to remove for cleaning/disinfecting to protect your cells
  • The Magnetic Orbital Drive system uses magnetic force to deliver precise speed control, low vibration, maintenance free operation and long service life
  • Suitable for use in CO2, Standard or Refrigerated Incubators at up to 20% CO2 and 90% Humidity environments
  • Wide range of accessories to accommodate various sample holders

Developed to help you economically scale-up cell production in your existing CO2 Incubator. Designed with sealed electronics to minimize heat disruption and ensure that conditions in the CO2 chamber are not affected.


Model OSC-26M
Orbital Diameter 19mm (.75 in)
Speed 30-300rpm
Time 00:00-99hL59min (“0” for running continuously)
Platform Dimensions 305 x 360mm (12 x 14.2 in)
Max. Load 6kg (13.2 lbs)
Operating Environment Ambient Temperature: 5° C ~ 60° C
Relative Humidity: <95%
Max. Power 8.5W
Power Supply AC100-240V, 50Hz/60Hz
Net Weight 18Kg (37 lbs)
Shaker Dimensions 375 x 300 x 94mm; (14.8 x 11.8 x 3.7 in)
Control Box Dimensions 90 x 160 x 26mm (3.5 x 6.3 x 1.02 in)


Download our Product Datasheet (PDF):

Orbital Shaker – CO2 Resistant

Request Quote from Distributor or more information:info@crystalindustries.com
