Upright Freezer Drawer Racks

For standard 2" Boxes

Quick Jump to a Specific Category:

/
Home
/
Category: For standard 2" Boxes

Showing 1–15 of 21 results

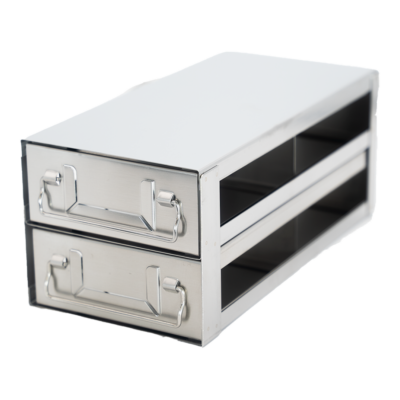

UFD-222 to UFD-562-S
Upright Freezer Drawer Racks

For Standard 2″ Boxes
- Designed to hold standard 2” cardboard (white or yellow), plastic (polypropylene or polycarbonate), or metal (stainless or aluminum) boxes.
- Drawer racks offer an organized system for the storage and retrieval of samples.
- Constructed of corrosion-resistant stainless steel with double welds and smooth edges.
- Security lock devices are available for each rack.
UFD-462-S

Panasonic Specific Model:

For Standard 2″ Boxes

Dimensions (DxWxH): 22 5/16 x 5 1/2 x 12 5/8 inches (566 x 140 x 321mm)
Compartment Dimensions: 5 3/8 x 5 1/4 x 2 1/8 inches (137.4 x 133 x 54.4mm)

Note: Only cardboard boxes fit, plastic boxes do not fit in UFD-462-S
UFD-362-S

Panasonic Specific Model:

UFD-362-S

3×6 Configuration

Dimensions (DxWxH): 16 7/8 x 12 5/8 x 5 1/2 inches (428 x 321 x 140 mm)
Compartment Dimensions: 5 3/8 x 2 1/16 x 5 1/4inches (137 x 51.6 x 133mm)
Note: Only cardboard boxes fit, plastic boxes do not fit in UFD-362-S
UFD-562

For Standard 2″ Boxes

Dimensions (DxWxH): 27 x 14 5/8 x 5 1/2 inches (687 x 359 x 140mm)
Compartment Dimensions: 5 3/8 x 2 1/16x 5 1/4inches (137.4 x 52 x 133mm)

For Panasonic Specific Model please see: UFD-562-S
UFD-552

For Standard 2″ Boxes

Dimensions (DxWxH): 27 x 11 13/16 x 5 1/2 inches (686 x 300 x 140mm)
Compartment Dimensions: 5 3/8 x 2 1/8 x 5 1/4 inches (137.4 x 54.4 x 133mm)

UFD-552-W-XX
UFD-542

For Standard 2″ Boxes

Dimensions (DxHxW): 27 x 9 7/16 x 5 1/2 inches (686 x 240 x 140mm)
Compartment Dimensions: 5 3/8 x 2 1/8 x 5 1/4inches (137.4 x 54.4 x 133mm)

UFD-542-W-XX: This rack comes with w/2″ box and Divider when ordering replace XX with either 81 or 100. Has the same Dimensions as UFD-542.
UFD-532

For Standard 2″ Boxes

Dimensions (DxWxH): 27 x 7 1/8 x 5 1/2 inches (686 x 181 x 140mm)
Compartment Dimensions: 5 3/8 x 2 1/8 x 5 1/4 inches (137.4 x 54.4 x 133mm)
UFD-472

For Standard 2″ Boxes

4×7 Configuration

Dimensions (DxWxH): 22 5/16 x 16 1/2 x 5 1/2 inches (566 x 419 x 140mm)
Compartment Dimensions: 5 3/8 x 2 1/8 x 5 1/4 inches (137.4 x 54.4 x 133mm)
UFD-462

For Standard 2″ Boxes

Dimensions (DxWxH): 22 5/16 x 14 1/8 x 5 1/2 inches (566 x 359 x 140mm)
Compartment Dimensions: 5 3/8 x 2 1/16 x 5 1/4 inches (137.4 x 52 x 133mm)

For Panasonic Specific Model please see: UFD-462-S
UFD-452

For Standard 2″ Boxes

Dimensions (DxWxH): 22 7/16 x 11 13/16 x 5 1/2 inches (566 x 300 x 140mm)
Compartment Dimensions: 5 3/8 x 2 1/8 x 5 1/4 inches (137.4 x 54.4 x 133mm)

For Panasonic Specific Model please see: UFD-452-S
UFD-442

For Standard 2″ Boxes

Dimensions (DxWxH): 22 5/16 x 9 7/16 x 5 1/2 inches (566 x 240 x 140mm)
Compartment Dimensions: 5 3/8 x 2 1/8 x 5 1/4 inches (137.4 x 54.4 x 133mm)

UFD-442-x-WW : Rack w/2 box and divider. To Order Change XX to 81 or 100
UFD-432

For Standard 2″ Boxes

Dimensions (DxWxH): 22 5/16 x 7 1/8 x 5 1/2 inches (566 x 181 x 140 mm)
Compartment Dimensions: 5 3/8 x 2 1/8 x 5 1/4 inches (137.4 x 54.4 x 133mm)
UFD-362

For Standard 2″ Boxes

3×6 Configuration

Dimensions (DxWxH): 16 3/4 x 14 1/8 x 5 1/2 inches (426 x 359 x 140mm)
Compartment Dimensions: 5 3/8 x 2 1/16 x 5 1/4 inches (137.4 x 51.6 x 133mm)

For Panasonic Specific Model please see: UFD-362-S
UFD-352

For Standard 2″ Boxes

Dimensions (DxWxH): 16 3/4 x 11 13/16 x 5 1/2 inches (426 x 300 x 140mm)
Compartment Dimensions: 5 3/8 x 2 1/8 x 5 1/4 inches (137.4 x 54.4 x 133mm)
UFD-342

For Standard 2″ Boxes

Dimensions (DxWxH): 16 3/4 x 9 7/16 x 5 1/2 inches (426 x 240 x 140 mm)
Compartment Dimensions: 5 3/8 x 2 1/8 x 5 1/4 inches (137.4 x 54.4 x 133mm)
