Top-Hinge Incubator Shaker IS-RDD3A / IS-RSD3A

Features

  • Easy to use LCD user interface
  • Precise Proportional-Integral-Derivative temperature control resulting in ±0.1°C accuracy
  • A highly efficient inverted compressor refrigeration system allows for temperatures as low as 15°C below room temperature or 4°C with low energy consumption (IS-RDD3A only)
  • Clear curved tempered glass window for viewing samples without disturbing chamber temperature
  • The terminal feedback system ensures precise shaking speed
  • Designed to reduce noise for quiet operation
  • Max capacity is 8 x 1L flasks
  • Timer 0~999 hours
  • Audible and visual alarms activate when abnormal parameters are detected
  • The program mode allows users to set up to 6 segments of varying temperature and speed

Crystal’s Technology and Industries versatile Benchtop incubator shakers with optional refrigeration (IS-RDD3A has a built-in refrigeration module with auto-defrost) are designed to provide an optimal environment to safely shake flasks, tubes racks, and micro-plates. These incubators are quiet, easy to operate, and convenient to load. Incubator Shakers are ideal for cell culture, solubility studies, extraction procedures, protein expression, and many other applications.

Specifications:

Model IS-RDD3A IS-RSD3A
Product Name Top-Hinge Incubator Shaker with Cooling Top-Hinge Incubator Shaker
Temp. Range Ambient -15°C ~ 60°C (Minimum: 4°C) Ambient +5°C ~ 60°C
Temp. Accuracy 0.1°C
Temp. Uniformity ±0.5°C (@ 37°C)
Ambient Relative Humidity Ambient -10°C ~ 35°C, 20%-80% RH
Speed Range 0 rpm, 30 rpm – 400 rpm
Speed Accuracy ±1 rpm
Orbit Diameter Ø26mm
Programmable Segments 6 Segments
Timer 0 – 999 hrs
Platform Size 450 × 400 mm (17.72 × 15.75 in)
Number of Platforms 1
Maximum Capacity Clamp Capacity: 42×50mL / 25×100mL / 24×150mL / 20×200mL / 20×250mL / 12×500mL / 8×1000mL / 4×2000mL Sticky Mat: 56×50mL / 42×100mL / 30×150mL / 30×200mL / 24×250mL / 20×300mL / 14×500mL / 9×1000mL / 4×2000mL
Power <700W <550W
Power Supply AC 110V / 60Hz
Outer Dimensions WxD×H 712 × 687 × 628 mm (28.03 × 27.05 × 24.72 in)
Inner Dimensions WxD×H 500 x 460 × 350 mm (19.67 x 18.11×13.78 in)
Net Weight 242 lb (110 kg) 220 lb (100 kg)

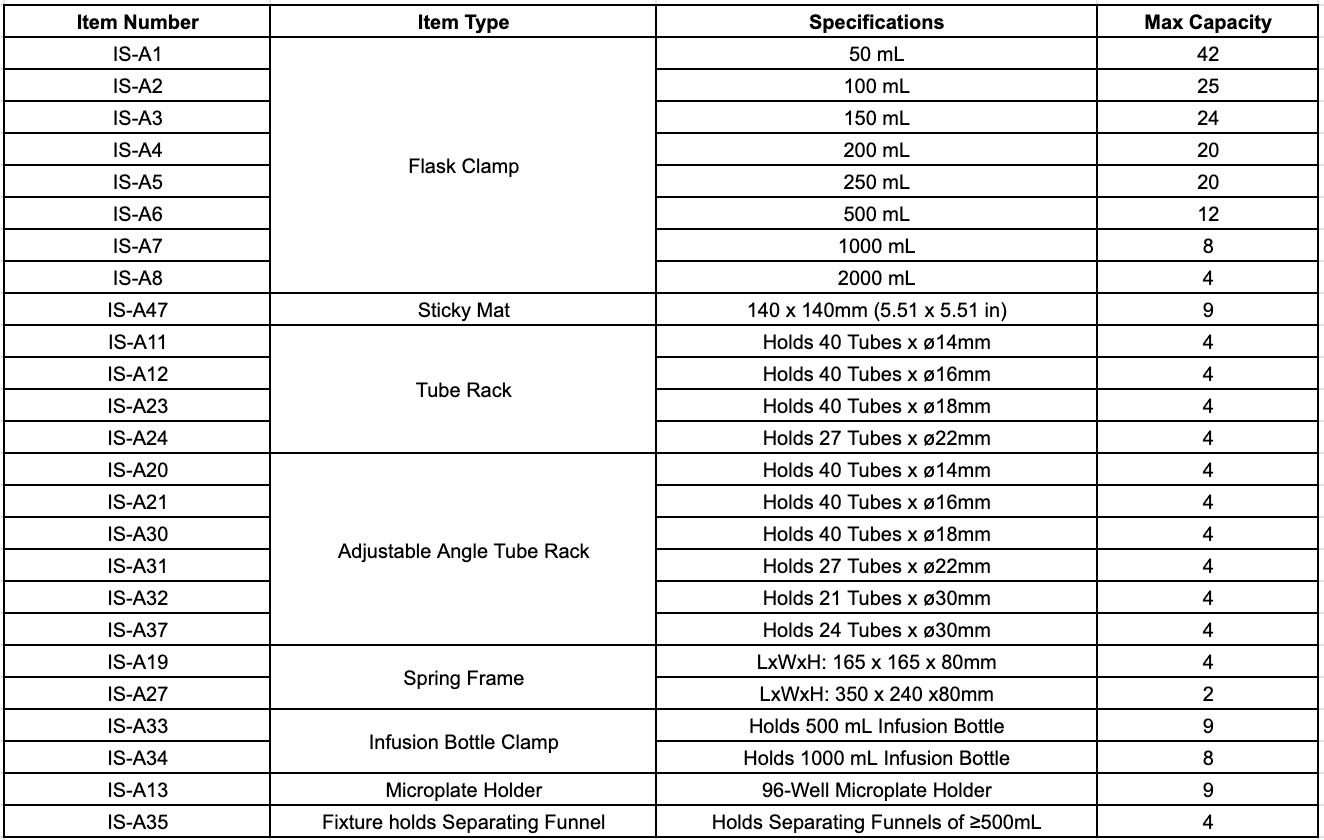

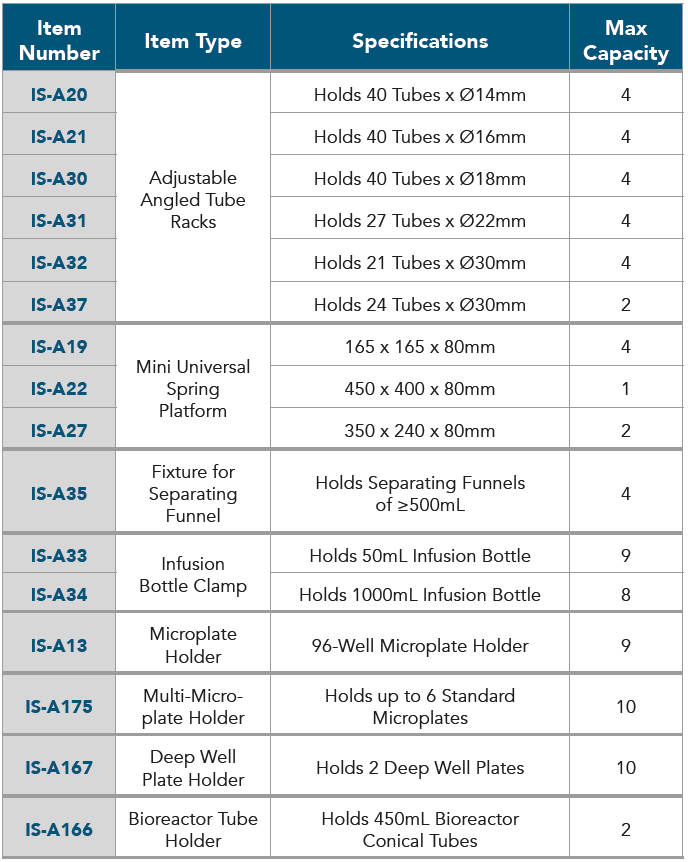

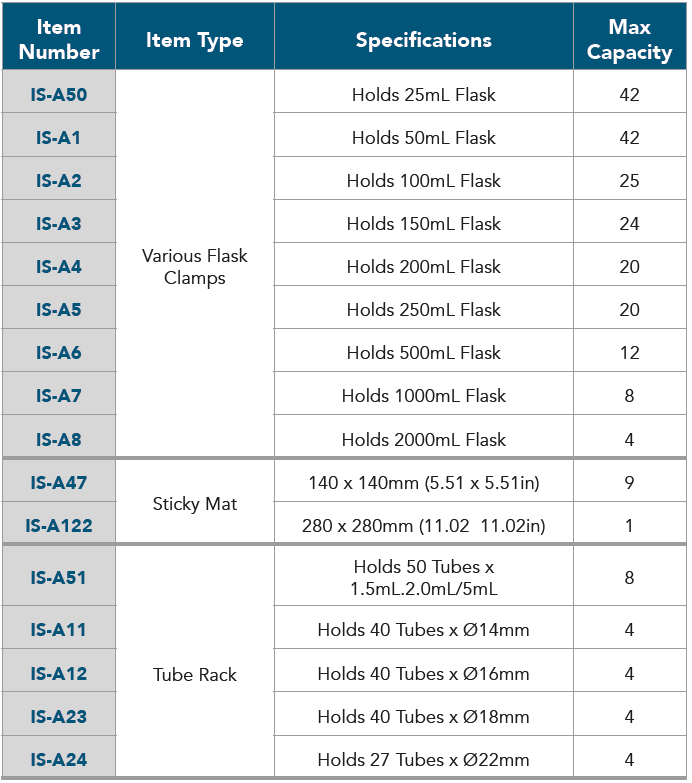

Accessories Specifications



Download our Product Datasheet (PDF):

Top Hinge IS-RDD3A/IS-RSD3A

Request Quote from Distributor or more information:info@crystalindustries.com
