Digital Mini Water Bath WB-01A


  • Microprocessor PID control with digital display
  • Excellent temperature uniformity
  • Overheating alarm and automatic shut off
  • Dry run protection with audible alarm to avoid damage if the water level is too low
  • Indicator light illuminates when temperature >60°C

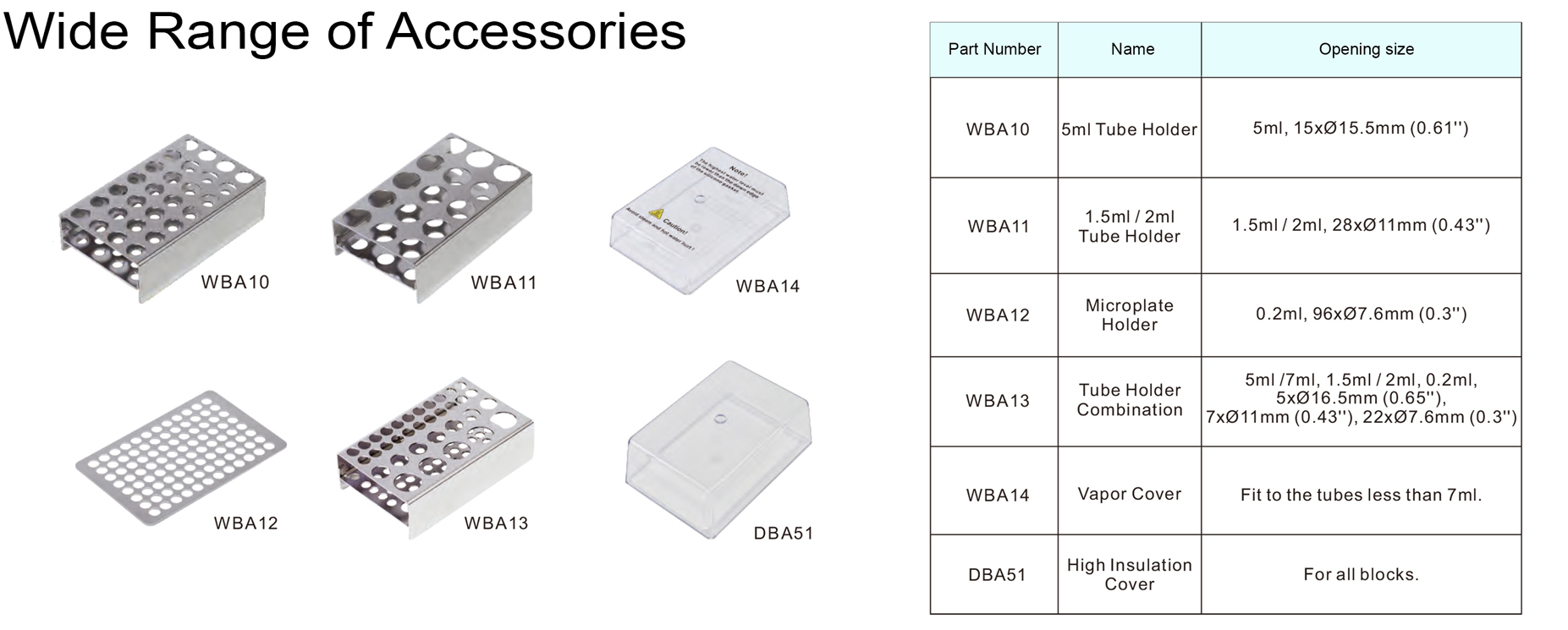

  • Various tube holders are available to order separately

Crystal Digital Mini Waterbaths, with 240ml capacity, is designed to provide highly precise and accurate temperature control from ambient to 100°C for various size tubes (0.2ml microtubes to 7ml tubes), within a unique, convenient space-saving footprint.


Model WB-01A
Product Name Programable Digital Water Bath
Temperature Range Ambient: +5℃~100℃
Temperature Stability @37°C: ≤±0.1°C (Water Temp)
Temperature Uniformity @37°C: ≤±0.3°C (Water Temp)
Heat Up Time 20°C to 95°C: ≤60min
Timer 0~99h 59min or Continuous
Programmable 6 Segments
Display LCD
Capacity 240mL
Chamber Dimensions 113 x 76 x 39 mm (4.5 x 3.0 x 1.5 in)
Accessories Included in Standard Packaging 1 x WBA14 Vapor Insulating Cover
Ambient Temperature 5℃~40℃
Ambient Relative Humidity ≤85%
Power Supply AC110V±11V, 60Hz
Max Power 100W
Exterior Dimensions 143 x 262 x 96 mm (5.6 x 10.3 x 3.8 in)
Net Weight 1.2 kg (2.7lbs)
Protection Level IP22
Certifications CE

Download our Product Datasheet (PDF):

Mini Water Bath

Request Quote from Distributor or more information:info@crystalindustries.com
